6.3.9. STEP 9 : A 2D shock tubeΒΆ

Now the code is OK to provide 2D results. The 2D shock tube consists in a square domain. At time t=0s, the pressure is uniform (1 bar) except in a square in the center where a higher value of the pressure is imposed. At the boundaries, wall conditions are chosen to see the pressure wave bounce off the wall.

A square of 1m*1m represents the domain, meshed with 250*250 cells, the CFL number is chosen equal to 0.45. The initial pressure field can be seen in Figure 6.3.

_images/initial2Dpressure.png

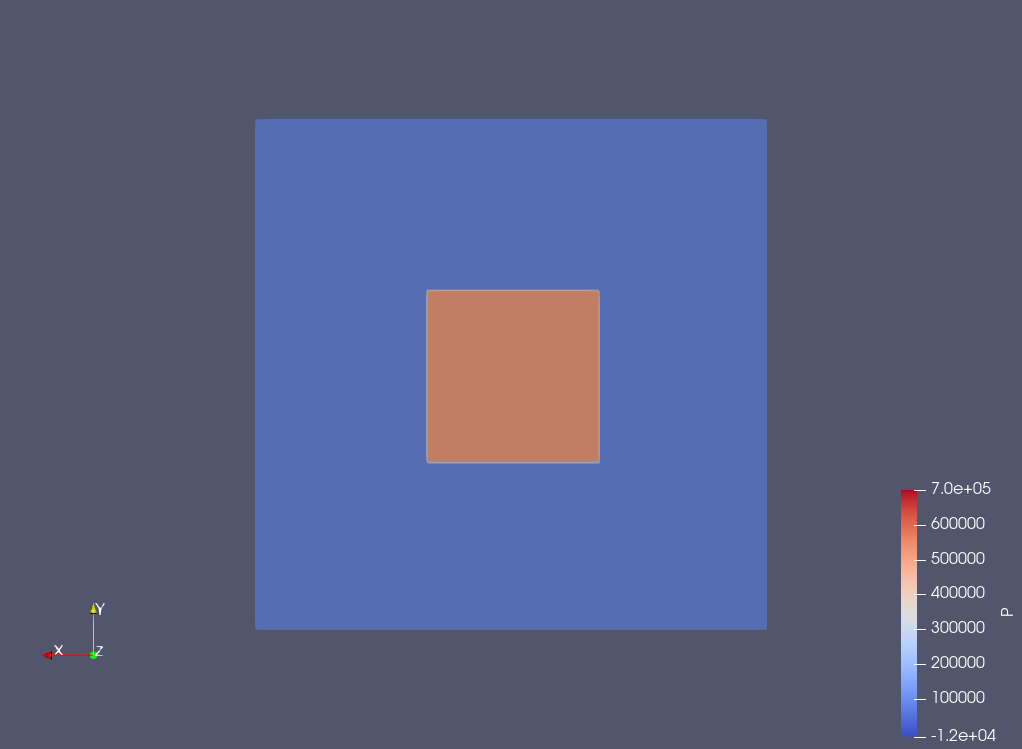

Figure 6.3 : 2D shock tube: initial pressure field (high pressure = 5 bar, low pressure =1 bar).

The results are plotted after a 500 timesteps run. The norm of the velocity field is presented in Figure 6.4. One can observe a symmetrical bounce of the flow on the walls

_images/velocityNormFinal.png

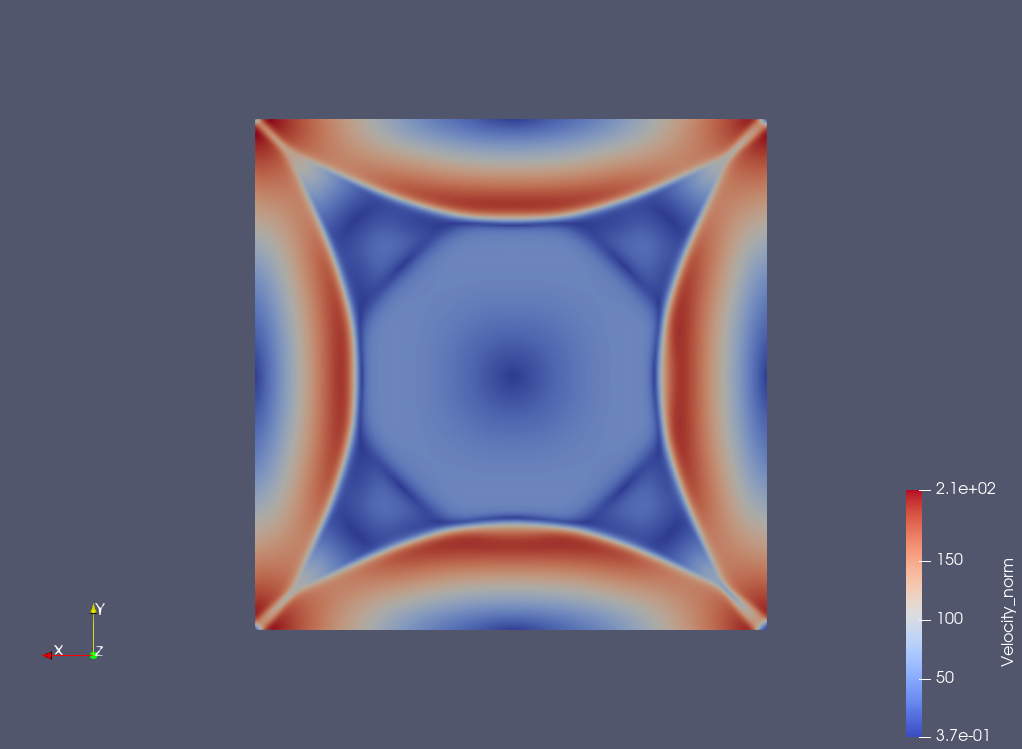

Figure 6.4 : 2D shock tube: Norm of the velocity after 500 iterations.
